3KW 6 Panel Solar Tracker System Heavy Duty Linear Actuator Slew Drive Controller Essential Parts for Optimal Solar Tracking

Name: 3KW 6 Panel Solar Tracker System Heavy Duty Linear Actuator Slew Drive Controller Essential Parts for Optimal Solar Tracking
Brand: Jimi-Tech
Price: 604.65 USD

Quality 3KW 6 Panel Solar Tracker System Heavy Duty Linear Actuator Slew Drive Controller Essential Parts for Optimal Solar Tracking for sale

Place of Origin : Guangdong, China

Wind Load : 27m/s

Type : Astro

Model Number : GPSST-D2

Snow Load : 0.85KN

System voltage : DC 24

linear actuator : OD3 MAX 15000N

MOQ : 2

Price : SG$604.65-722.95

Brand Name : Jimi-Tech

Warranty : 1 years

slewing drive : SE5 5600N.m

APP : RS485 Connect

Contact Now

Products Description

Product Description

3KW 6 Panel Solar Tracker System Heavy Duty Linear Actuator Slew Drive Controller Essential Parts for Optimal Solar Tracking

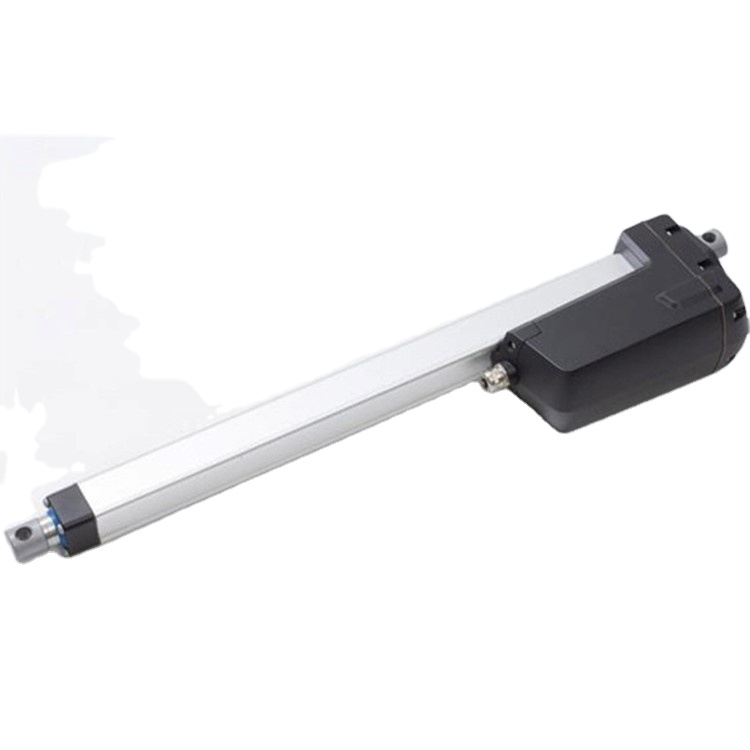

OD3 Linear actuator.

Voltage: 24V DC

Max loading: 15000N

Speed: 2 mm/s

Stroke 600mm

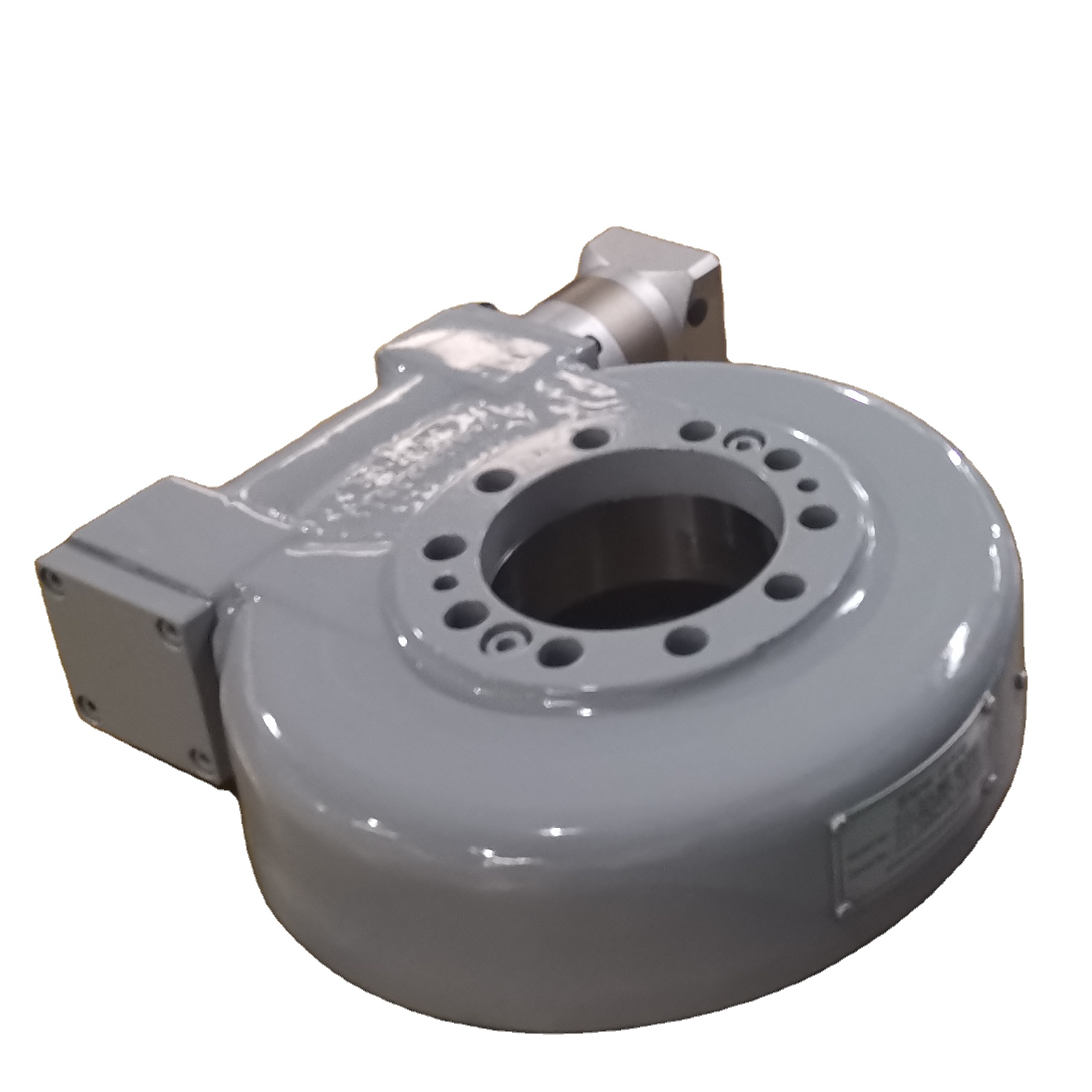

SE5 Slewing drive.

Voltage: 24V DC

Output torque: 2700N.m

Speed: 0.052 rmp

Astro solar tracker controller.

Voltage:24V DC

Dual axis solar tracker controller

RS485 connect APP

Angle sensor

Wind sensor

Specification

Including OD3 linear actuator, SE5 slewing drive, Dual axis Astro solar tracker controller.

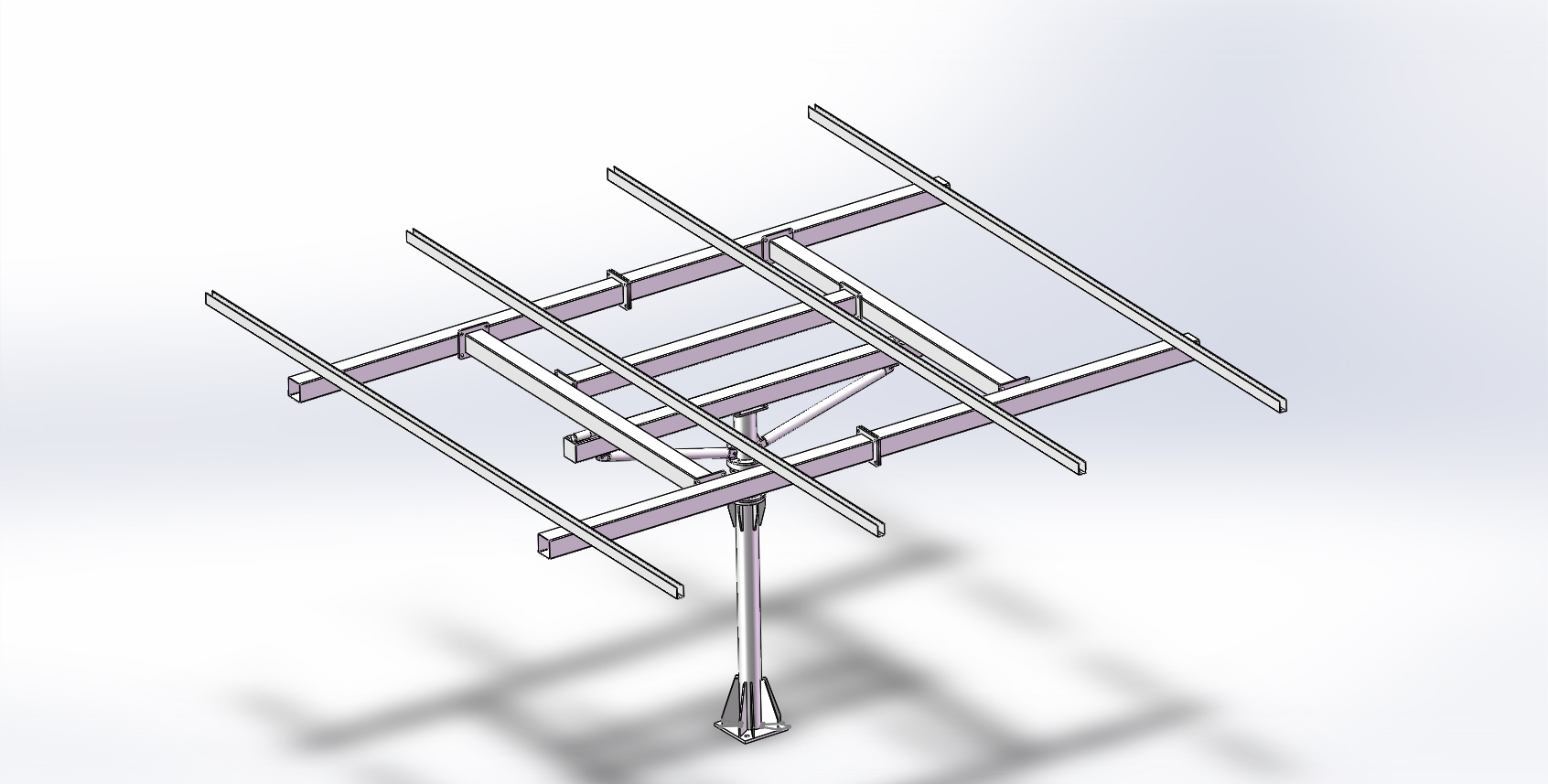

Below is the completed solar tracker Spec. FYI

Components
linear actuator OD3
slewing drive SE5
Astro controller

Product Description

Recommend Products

2 panels 1-1.2kw.

10 panels 5-6kw.

24 panels 12-15kw.

Company Profile

More information:

2008 Company was founded by returned oversea Chinese with 2 million RMB. Major business was linear actuator trade in China

2010 First factory was founded in Suzou city with other company cooperation. Customers were developing to 200+. 2011 New product categories were introduced: adjustable electric desk and solar tracker system.

2012 Wuhan, Beijing, Xian city offices were founded. Vietnam office was founded.

2013 Shenzhen product developing center was founded and take more cooperation with Universities. DC motors factory was founded in Shenzhen

2015 Developing Center was successful to develop out integrated solar tracker completed systems. Introduced electric cylinders products.

2016 Group Company focused back on linear actuator products and prepared for new factory.

2018 New factory with automatic production lines was founded in Dongguan city.

2019 Coming to focus on Solar tracker business

2021 New GPS solar tracker controller products were developed out.

2023 New Astro solar tracker controller has been developed out.

Professional service.

Very professionsl team.

Certifications

Part of certifications.

Product packaging

Others.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2020,sell to North America(20.00%),Domestic Market(15.00%),Mid East(10.00%),Northern Europe(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),South America(5.00%),Southern Europe(5.00%),Oceania(5.00%),Africa(5.00%),Eastern Asia(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
solar trackers,linear actuators,solar tracker controllers,electric cylinders,slewing drvies

4. why should you buy from us not from other suppliers?
More than 10 years transmission products development. Have more than 20 specialists team for solar tracker design. Have more than 100 patents about solar tracker system.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese
