5KW 10-PANEL Heavy Duty Solar Panel System Linear Actuator Slew Drive Controller Key Components for Efficient Solar Tracking

Name: 5KW 10PANEL Heavy Duty Solar Panel System Linear Actuator Slew Drive Controller Key Components for Efficient Solar Tracking
Brand: Jimi-Tech
Price: 650 USD

Quality 5KW 10-PANEL Heavy Duty Solar Panel System Linear Actuator Slew Drive Controller Key Components for Efficient Solar Tracking for sale

Warranty : 1 years

Snow Load : 0.85KN

Model Number : GPSST-D2

Wind Load : 27m/s(88.58ft/s)

Type : Astro

Brand Name : Jimi-Tech

System voltage : DC 24

MOQ : 2

linear actuator : OD4 MAX 60000N

slewing drive : SE7 11000N.m

Price : $650-780

Place of Origin : Guangdong, China

APP : RS485 Connect

Contact Now

Products Description

5KW 10-PANEL Heavy Duty Solar Panel System Linear Actuator Slew Drive Controller Key Components for Efficient Solar Tracking

OD4 linear actuator.

Voltage: 24V

Max loading: 50000N

Speed: 2.2mm/s

Stroke: 600mm

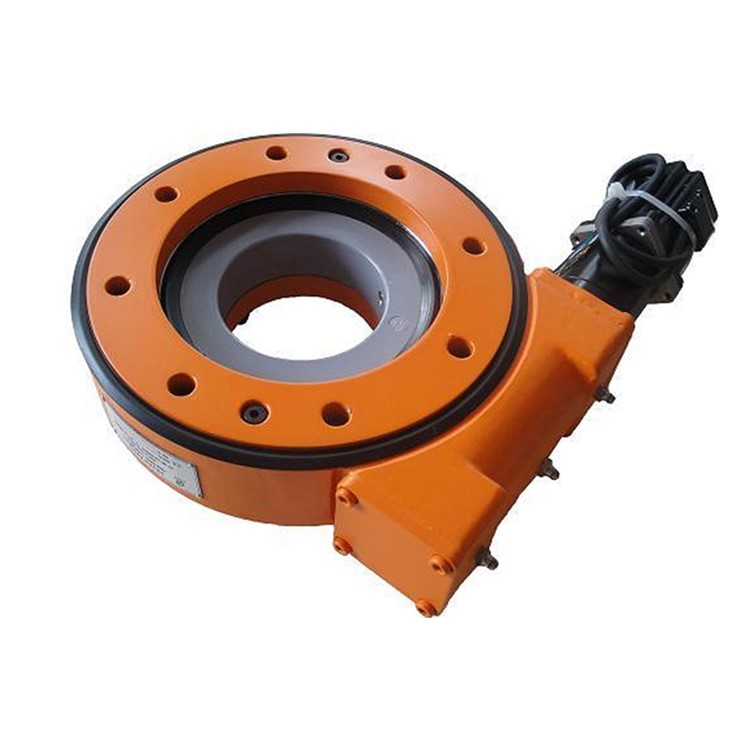

SE7 slewing drive.

Voltage:24V

Max output torque: 11000N.m

Speed: 0.052 rmp

Astro solar tracker controller.

Model: Astro

Dual axis solar tracker controller

RS485 connect APP

Angle sensor

Win sensor

Specification

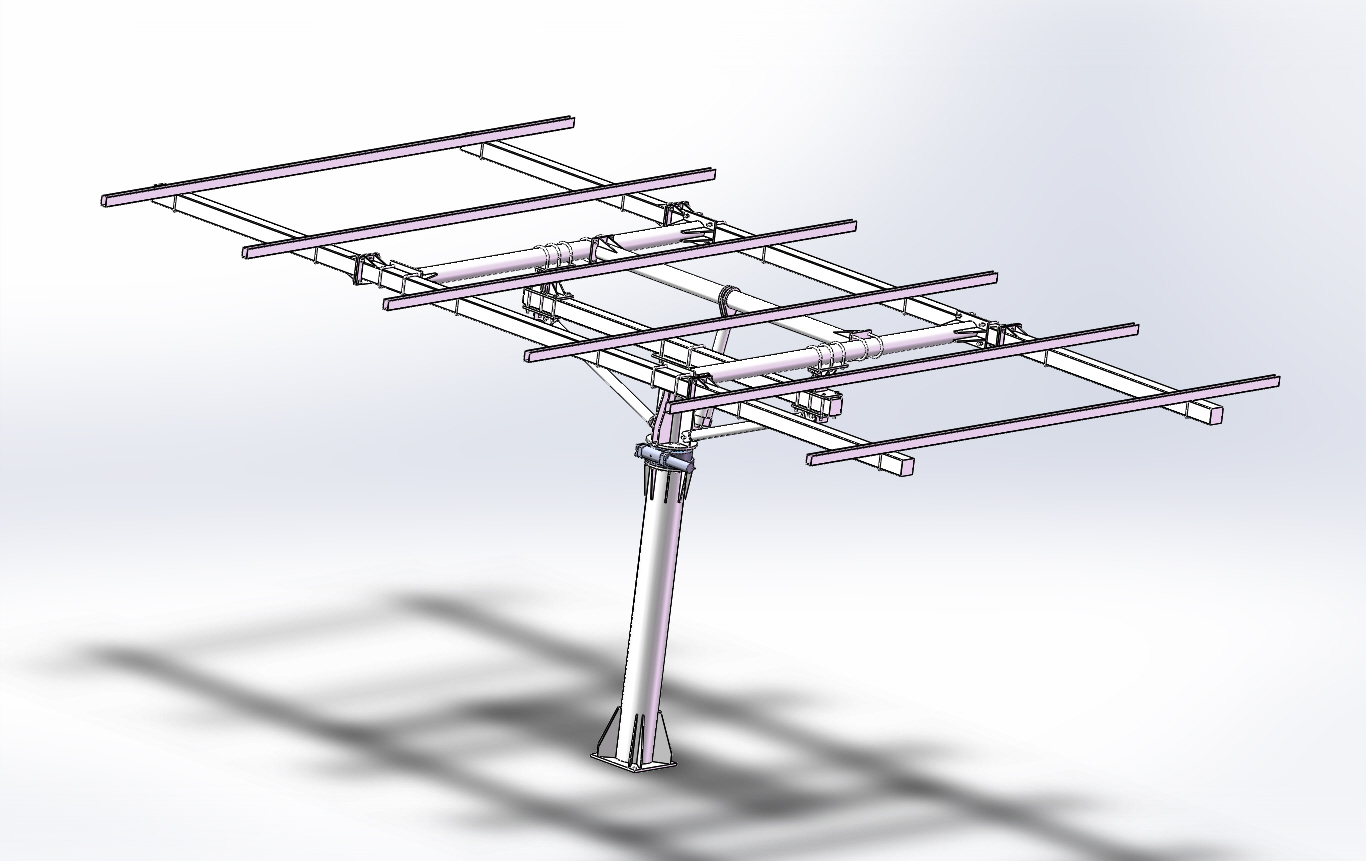

10 panels system .

10 panels 5kw solar tracking system key components includes: OD4 linear actuator 1pcs, SE7 slewing drive 1pcs, Astro solar tracker controller 1pc.

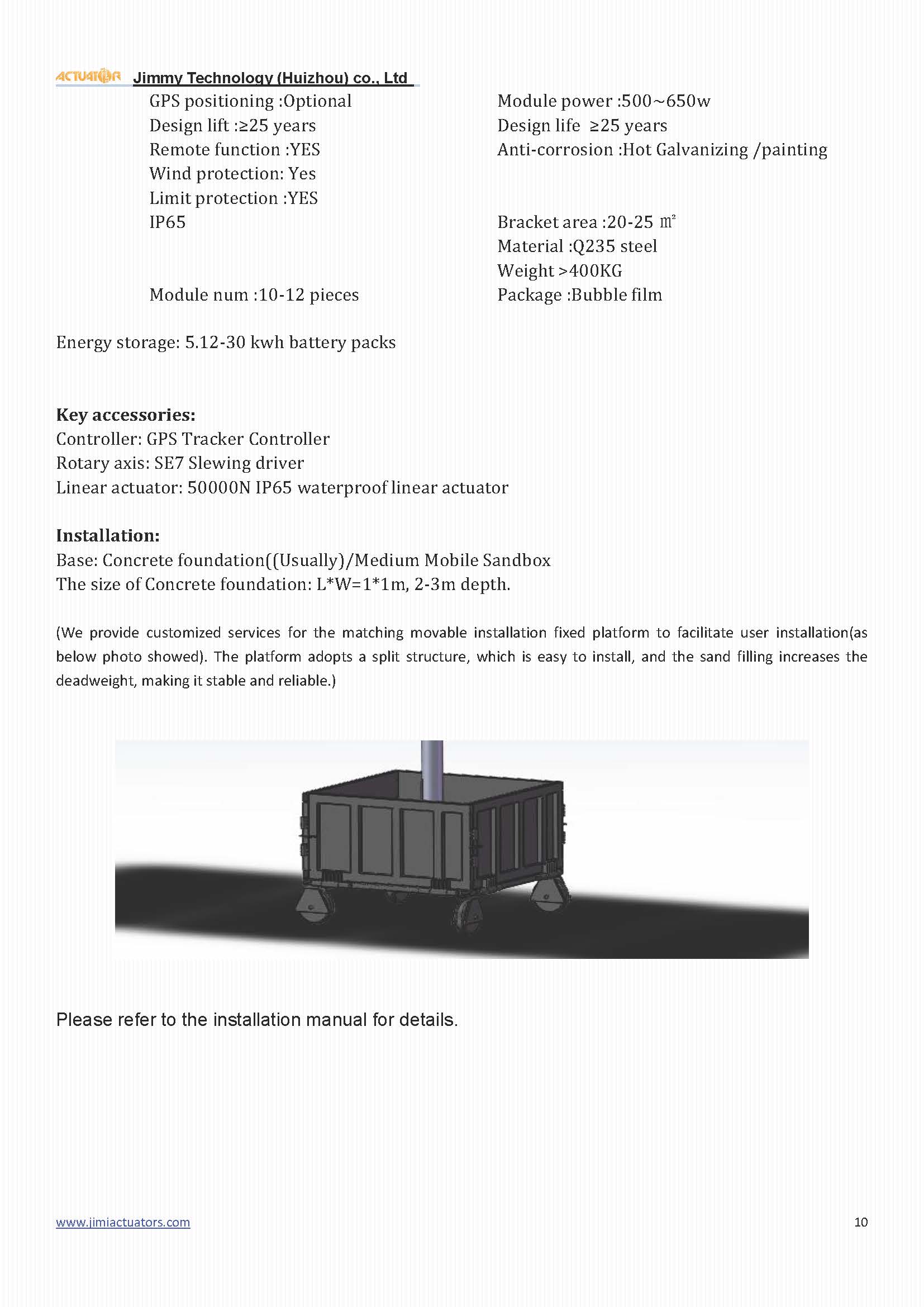

Below is the completed solar trakcker system spec, FYI

Components
linear actuator OD4
slewing drive SE7
Astro Controller

Recommend Products

2 panels 1-1.2kw.

10 panels 5-6kw.

24 panels 12-15kw.

Company Profile

More information:

2008 Company was founded by returned oversea Chinese with 2 million RMB. Major business was linear actuator trade in China

2010 First factory was founded in Suzou city with other company cooperation. Customers were developing to 200+. 2011 New product categories were introduced: adjustable electric desk and solar tracker system.

2012 Wuhan, Beijing, Xian city offices were founded. Vietnam office was founded.

2013 Shenzhen product developing center was founded and take more cooperation with Universities. DC motors factory was founded in Shenzhen

2015 Developing Center was successful to develop out integrated solar tracker completed systems. Introduced electric cylinders products.

2016 Group Company focused back on linear actuator products and prepared for new factory.

2018 New factory with automatic production lines was founded in Dongguan city.

2019 Coming to focus on Solar tracker business

2021 New GPS solar tracker controller products were developed out.

2023 New Astro solar tracker controller has been developed out.

Professional service.

Very professionsl team.

Certifications

Part of certifications.

Product packaging

Others.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2020,sell to North America(20.00%),Domestic Market(15.00%),Mid East(10.00%),Northern Europe(10.00%),Western Europe(10.00%),Eastern Europe(10.00%),South America(5.00%),Southern Europe(5.00%),Oceania(5.00%),Africa(5.00%),Eastern Asia(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
solar trackers,linear actuators,solar tracker controllers,electric cylinders,slewing drvies

4. why should you buy from us not from other suppliers?
More than 10 years transmission products development. Have more than 20 specialists team for solar tracker design. Have more than 100 patents about solar tracker system.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese
